Pipe Stretcher Kit
Model
KA-5187
Specification:
- Stretches pipe up to 4-1/4” including stainless steel.

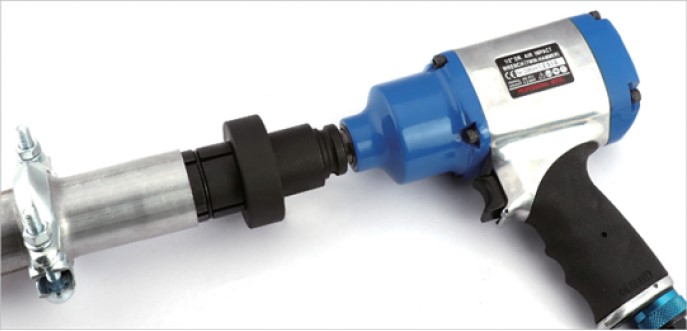

- Use with an impact wrench to quickly stretch pipes.
- Collet sets expand pipes from 1-5/8” to 4-1/4”.

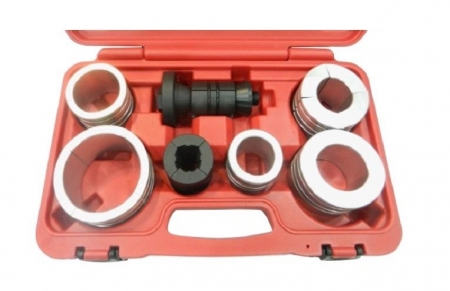

- The tool can be used on the vehicle. The pipe stretcher kit is a convenient, inexpensive alternative to hydraulic pipe expanders. Comes in a molded storage case.
- Applications: expands all types of exhaust pipe, including stainless steel, from 1-5/8” to 4-1/4” in size.
Instructions:
turn 1-1/8” bolt with a 1/2” or 3/4” impact wrench. If necessary, choose appropriate aluminum adapter to use with the standard expander tool. The #3 adapter must be used with the #5 adapter.
Be sure to keep threads and cone well lubricated.
Extender #1 (2-3/8”)
Extender #2 (2-3/4”)
Extender #3 (3-1/8”)
Extender #4 (3-1/2”)
Extender #5 (3-7/8”)
.jpg)
.jpg)
.jpg)
turn 1-1/8” bolt with a 1/2” or 3/4” impact wrench. If necessary, choose appropriate aluminum adapter to use with the standard expander tool. The #3 adapter must be used with the #5 adapter.
Be sure to keep threads and cone well lubricated.
Extender #1 (2-3/8”)
Extender #2 (2-3/4”)
Extender #3 (3-1/8”)
Extender #4 (3-1/2”)
Extender #5 (3-7/8”)
