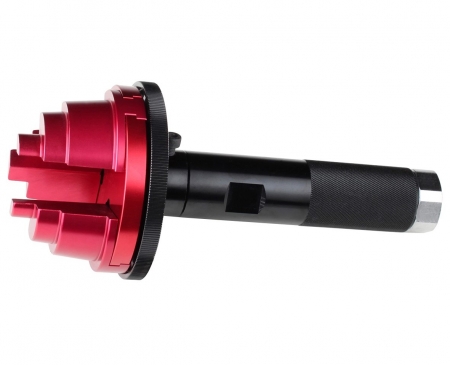

Universal Bearing Race And Seal Driver (Adjustable)
Model
KA-7286A / KA-7286B
Specification:
- KA-7286A : 18mm~90mm (0.708”~3.543”)
- KA-7286B : 9.5mm~50mm (0.374”~1.968”)
Description
|
|
KA-7286A 18mm~90mm (0.708”~3.543”)
Step 1: 18mm~53mm (0.708”~2.086”)
Step 2: 41mm~76mm (1.614”~2.992”)
Step 3: 54mm~90mm (2.125”~3.543”)
KA-7286B 9.5mm~50mm (0.374”~1.968”)
Step 1: 9.5mm~23.5mm (0.374’~0.925”)
Step 2: 23.5mm~36.5mm (0.925”~1.437”)
Step 3: 36.5mm~50.0mm (1.437”~1.968”)
Step 1: 18mm~53mm (0.708”~2.086”)
Step 2: 41mm~76mm (1.614”~2.992”)
Step 3: 54mm~90mm (2.125”~3.543”)
KA-7286B 9.5mm~50mm (0.374”~1.968”)
Step 1: 9.5mm~23.5mm (0.374’~0.925”)
Step 2: 23.5mm~36.5mm (0.925”~1.437”)
Step 3: 36.5mm~50.0mm (1.437”~1.968”)
|
|
|
|
|
|

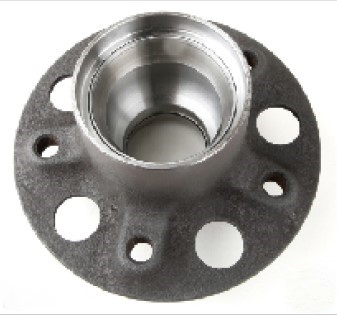

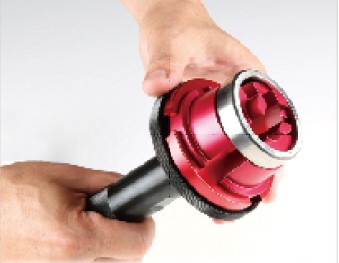

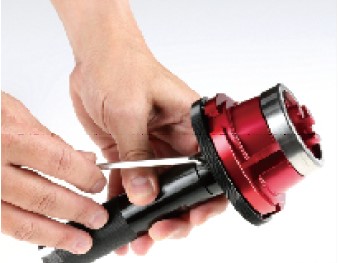

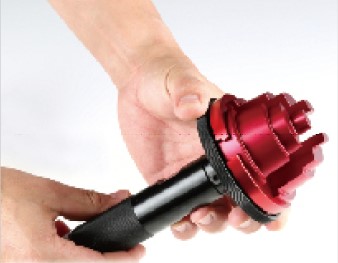

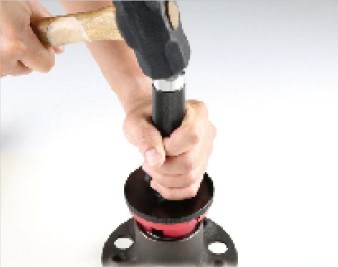

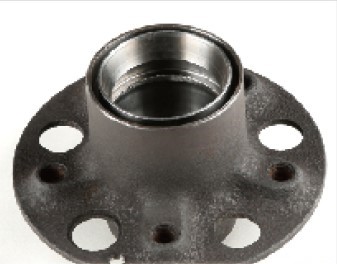

1. Loosen the crew, and then turn the dial to expand the jaws. | 2. The face of the jaws seat against the race or seal. | 3. Tighten the screw. | 4. Place the race or seal in the mouth of the housing. | 5. Tap the driver handle to force the race or seal into place. | 6. Done. |
