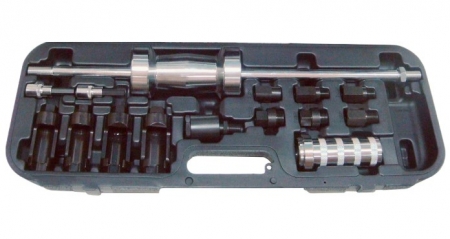

Diesel Injector Puller
Model
KA-2160
Specification:
- Suitable for the removal of stubborn Bosch/Delphi diesel injectors.
- Set includes 6 adaptors for different removal methods.
- Features a flexible joint adaptor allowing the slide hammer to be used in restricted areas.
Content:
1. Connecting thread (injector nozzle): M18 x 1.5
2. Slide hammer: 4.8kg
3. Universal joint: M18 x 1.5
4. Pull spindle: M14 x 1.5, M16 x 1.0, M17 x 1.0, M20 x 1.0, M25 x 1.0, M27 x 1.0
5. Special bit insert hex 10mm: Ø7.6 x Ø4.8, Ø6.6
6. Special socket insert 25mm, 27mm, 29mm, 30mm hex.
7. Adaptor:
1. Connecting thread (injector nozzle): M18 x 1.5
2. Slide hammer: 4.8kg
3. Universal joint: M18 x 1.5
4. Pull spindle: M14 x 1.5, M16 x 1.0, M17 x 1.0, M20 x 1.0, M25 x 1.0, M27 x 1.0
5. Special bit insert hex 10mm: Ø7.6 x Ø4.8, Ø6.6
6. Special socket insert 25mm, 27mm, 29mm, 30mm hex.
7. Adaptor:
| size | application | size | application |
|---|---|---|---|
| M14 x 1.5 | BMW M47 BMW211 CDI | M20 x 1.0 | Denso |
| M16 x 1.0 | Toyota 2.2 | M25 x 1.0 | Siemens |
| M17 x 1.0 | MB Bosch | M27 x 1.0 | Siemens |
