1/2” Super Stubby Air Impact Wrench

New Products
PA-6068
PA-6068

Model

PA-6068

Specification:

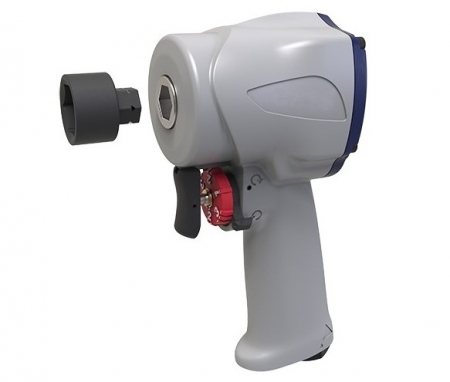

  • Replaceable anvil design for short socket or change to traditional anvil of 3/8” and 1/2”.

Description

  • Mechanism: Jumbo Hammer
  • Highest durable Japanese steel anvil.
  • Handle exhaust.
  • One hand operation for Forward & Reverse: 3 positions for each side.

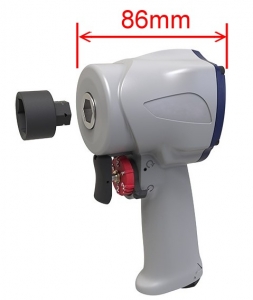

  • Short Length: only 3.3” (84mm) from front to rear allows to access easily in cramped spaces.
  • Die casting of housing.
  • Powerful torque with low noise.
  • Components with durable and heavy duty materials.
Replaceable anvil design for short socket or change to traditional anvil of 3/8” and 1/2”.
Square Drive Bolt Capacity Avg/Air Con. Air Inlet Air Pressure Hose Size I.D. Torque
5 sec.
Max Torque
10 Sec.
Free Speed Vibration Sound Pressure Level Overall Length Net Weight
1/2” 5/8” 4.0CFM 1/4” 6.2 Bar 3/8” 500 FT-LB 550 FT-LB 9000 RPM 9.0m/s2 96.5 Dba 84mm 1.45 kg
    113 L/min   90 PSI   678 N.m. 746 N.m.       3.3” 3.20 LB
