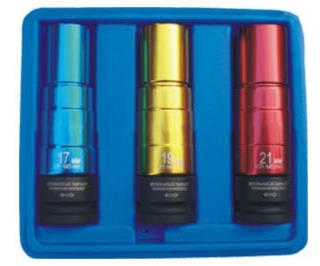

3pcs Hydraulic Torsion Dual Torque Impact Socket

KA-6288K-HD
KA-6288K-HD

Model

KA-6288K-HD

Specification:

  • Size: 17, 19, 21mm

HYDRAULIC TORSION DUAL TORQUE IMPACT SOCKET

How to use H.D.T socket

  1. Do not use hand tools.
  2. Use with a 1/2” Dr. pneumatic or power impact wrench
  3. Set up the working air pressure at 90psi (6.2 bar, 6.3kg/cm, 62pa), and ensure the power deliver of the impact wrench between 190~210Nm. (140~155ft/lbs). The output of the sockets will be 115Nm ±6%(85ft/lbs ±6%)
  4. If other torque / torsion required please reference the torque / torsion chart to set up the output of the impact wrench and obtain the require torque/ torsion value.

Item

Tightening

Loosening

Life

Guaranty

Mechanism

Safety

Range of Tightened

Maintenance of Tightened

Adjustment of Working Torque


H.D.T.
Torsion Socket

Excellent

Excellent

Excellent

Excellent

Hydraulic

Excellent

Excellent

Excellent

Excellent


Torsion Bar

Excellent

-----

-----

-----

Spring

Good

Good

-----

-----
