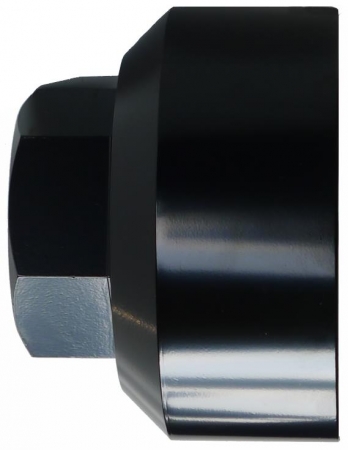

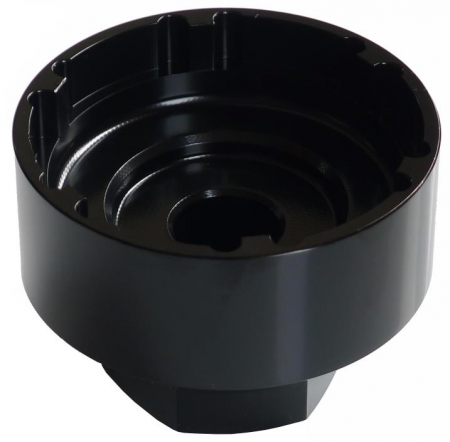

Groove Nut Socket With 6 Studs
Model
KA-3691
Specification:
- Internal square drive to DIN 3121 /ISO 1174.
- Six sided drive SW 60
- High accuracy of fit.
- Extremely robust execution.
- Suitable for high tightening and loosening torque.
- Special steel.
- Application range: MAN TGA Front axle, V9-82L-01 (Disk brake/ABS),etc.
| Inner Ø mm | Outer Ø mm | H mm | Stud Ø mm |
Stud | Stud width mm | kg |
|---|---|---|---|---|---|---|
| 101.0 | 110.0 | 80.0 | 93.0 | 6 | 7.2 | 2.65 |
