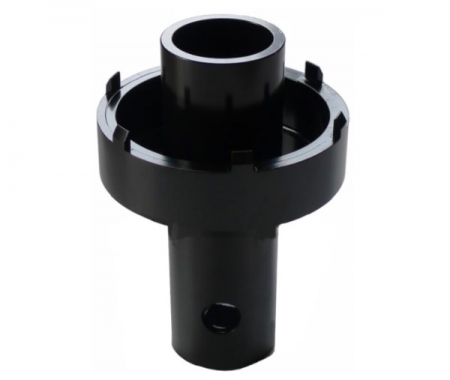

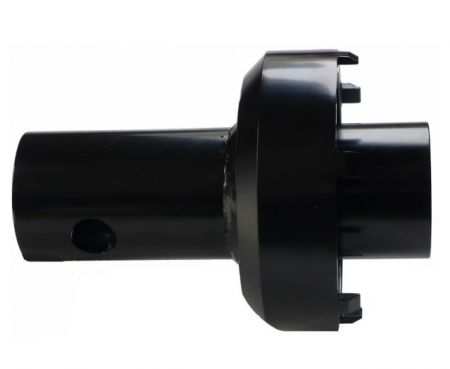

Groove Nut Socket With 6 Studs – 105 ~ 125mm
Model
KA-3688
Specification:
- Internal square drive to DIN 3121 /ISO 1174 .
- Rigid Locating tube.
- High accuracy of fit.
- Extremely robust execution.
- Suitable for high tightening and loosening torque.
- Special steel.
- Application : Mercedes Benz Actros Rear axle, HL/HL 8 (Hypoid), etc
| Inner Ø mm | Outer Ø mm | H mm | Stud Ø mm |
Stud | Stud width mm | kg |
|---|---|---|---|---|---|---|
| 105.0 | 125.0 | 180.0 | 116.0 | 6 | 10.0 | 2.95 |
