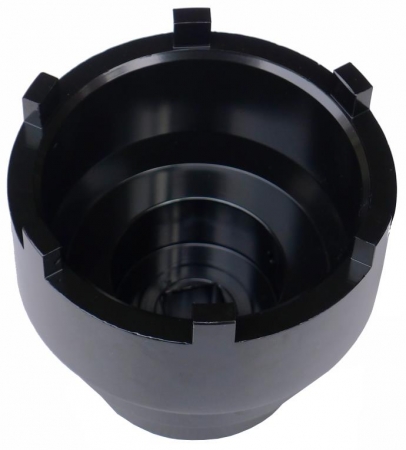

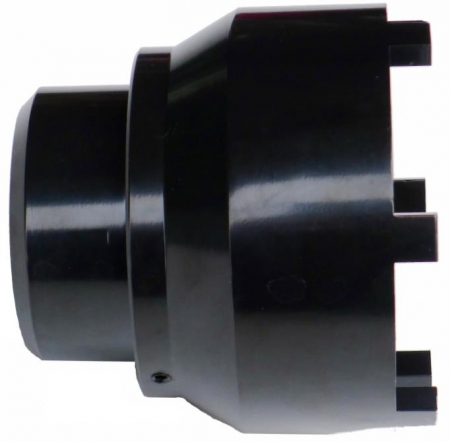

Groove Nut Socket With 6 Studs – 95 ~ 115mm
Model
KA-3687
Specification:
- Internal square drive to DIN 3121 /ISO 1174.
- Optional with sleeve locating tube.
- High accuracy of fit.
- Extremely robust execution.
- Suitable for high tightening and loosening torque.
- Special steel.
- Application: Mercedes Benz und MAN 10+13t Reduction axle, Hypoid-and Trailer axle NR7/4, Omnibus 0305 G + 0405G, etc.
Inner Ø mm | Outer Ø mm | H mm | Stud Ø mm |
Stud | Stud width mm | kg |
---|---|---|---|---|---|---|
95.0 | 115.0 | 110.0 | 101.0 | 6 | 11.5 | 2.87 |
