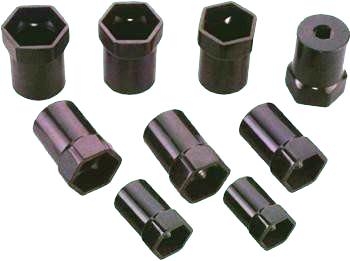

Truck Pinion Locknut Sockets
Model
KA-3219 / KA-3220 / KA-3221 / KA-3222 / KA-3223 / KA-3224 / KA-3225 / KA-3226 / KA-3227
Specification:
- Seven sockets, engineered with the proper clearance to fit the yoke and locknut assembly on a wide variety of truck transmissions/differentials. Sockets have 3" of usable depth, 4" overall length. Eliminates the need to gring or modify a standard socket to provide the necessary clearance.
| No. | Hex Size | A | B | C | D | E |
|---|---|---|---|---|---|---|
| KA-3219 | 2” | 59.94 | 67.31 | 76.2 | 25.91 | 104.14 |
| KA-3220 | 2-1/8’ | 62.99 | 71.37 | 76.2 | 25.91 | 104.14 |
| KA-3221 | 2-1/4” | 66.04 | 75.95 | 76.2 | 25.91 | 104.14 |
| KA-3222 | 2-3/8” | 70.1 | 80 | 76.2 | 25.91 | 104.14 |
| KA-3223 | 2-1/2” | 72.9 | 83.06 | 76.2 | 25.91 | 104.14 |
| KA-3224 | 2-5/8” | 75.95 | 86.87 | 76.2 | 25.91 | 104.14 |
| KA-3225 | 2-3/4” | 77.98 | 91.44 | 76.2 | 25.91 | 104.14 |
| KA-3226 | 55mm | 64 | 72.39 | 76.2 | 25.91 | 104.14 |
| KA-3227 | 65mm | 73.91 | 84.58 | 76.2 | 25.91 | 104.14 |
