Description
|
|
FUNCTION
1. Power Indicator & Noise Indicator
1. Power Indicator & Noise Indicator
The indicator lights when the power is on.
The Noise Indicator will be green, yellow or red according to the detected volume.
2. Earphone & Channel Socket
The Noise Indicator will be green, yellow or red according to the detected volume.
Exclusive earphone, adjust volume and detect the source of noise.
Detect different locations by 4 channels.
3. Noise Indicator Sensitivity Switch
Detect different locations by 4 channels.
Adjust the sensitivity switch to increase or decrease the display range of the indicator.
4. Power & Sound Sensitivity Switch
Power on/off and adjust sound sensitivity.
When raising the sound sensitivity, it will increase the detecting range of sensor, too.
5. Channel Selection
When raising the sound sensitivity, it will increase the detecting range of sensor, too.
Choose the channel you want and monitor the noise by earphone.
 |
 |
 |
 |
| 1 | 2 | 3 | 4 |
 |
 |
 |
 |
| 5 | 6 | 7 | 8 |

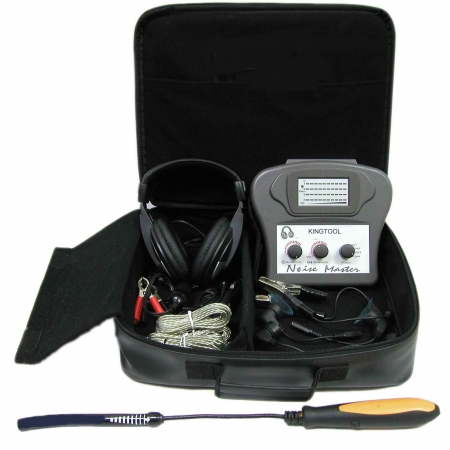

| 1）Main body × 1 | 6） Magnetic sensor × 2 | ||
| 2）Earphone × 1 | 7） Sucker sensor × 2 | ||
| 3）Power line × 1 | 8） Clipping sensor ×2 | ||
| 4）Sensor extended line × 4 | 9） Bag × 1 | ||
| 5）Holding sensor × 1 | 10）User's manual × 1 | ||
